Variable info. printing,Marking on packaging
Printing

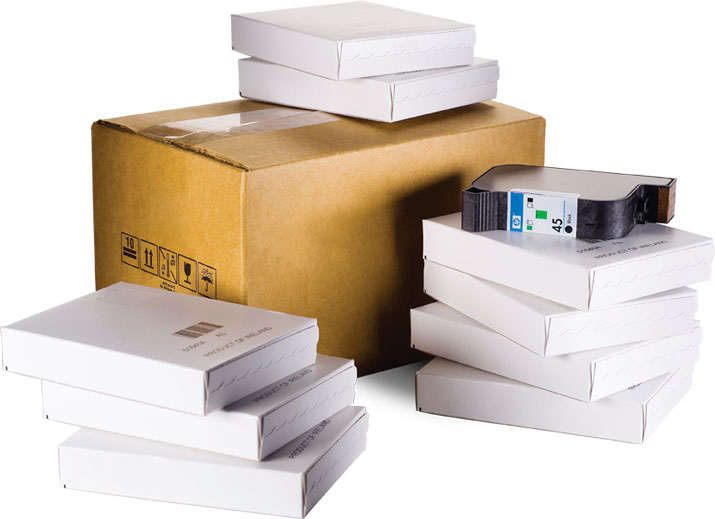

Packaging
And other industrial areas of the ink-jet system
Application of Thermal Inkjet System

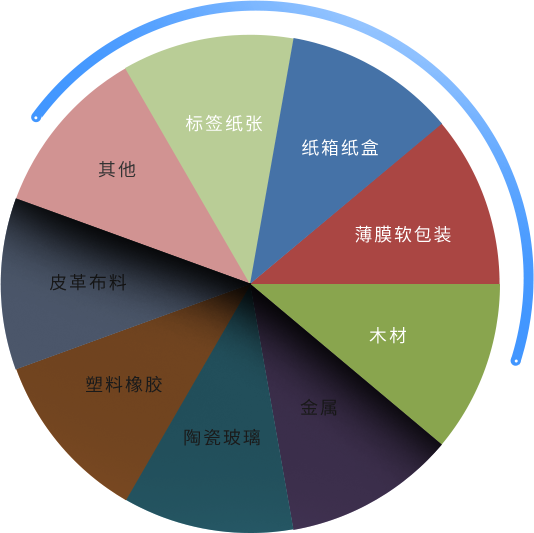

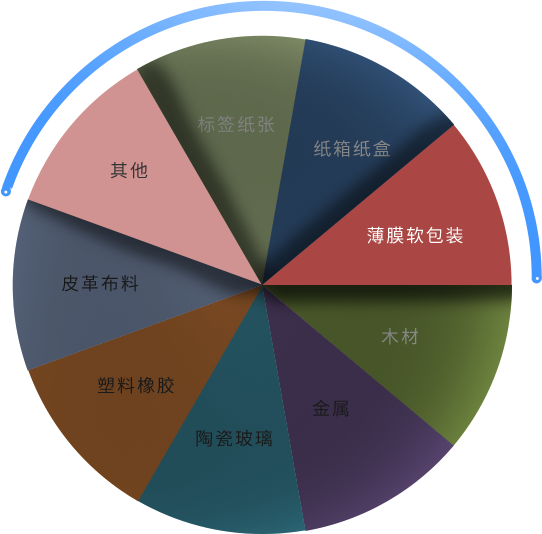

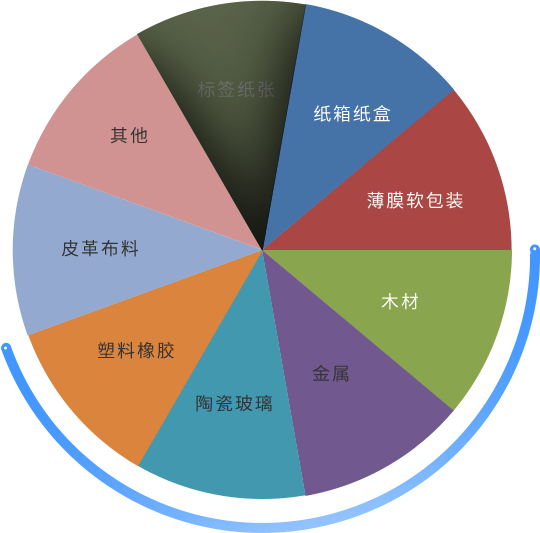

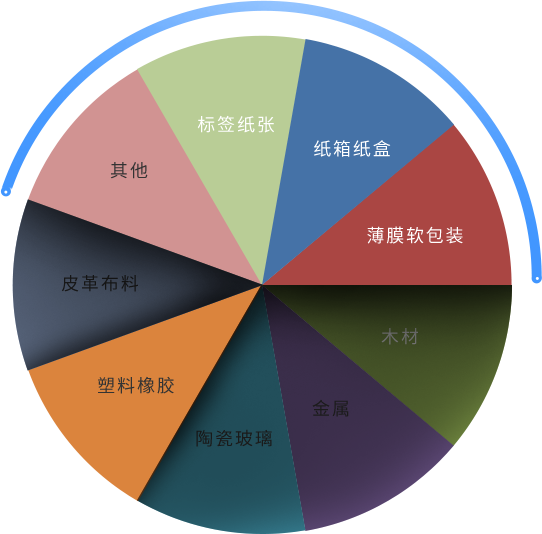

It is suitable for the printing needs of medicine box, corrugated case, tagboard, film, board, ceramic and paper, which is permeable material and semipermeable material.
Text
Calculator
Time
Date
Ban Do
Date time, graphic pattern, counter, shift code, fixed & variable text, real-time printing, database connection, barcode and 2D barcode, including UPC、EAN\UCC-128、Code128、ITF、Matrix、PDF417、Data Matrix、QR-code.

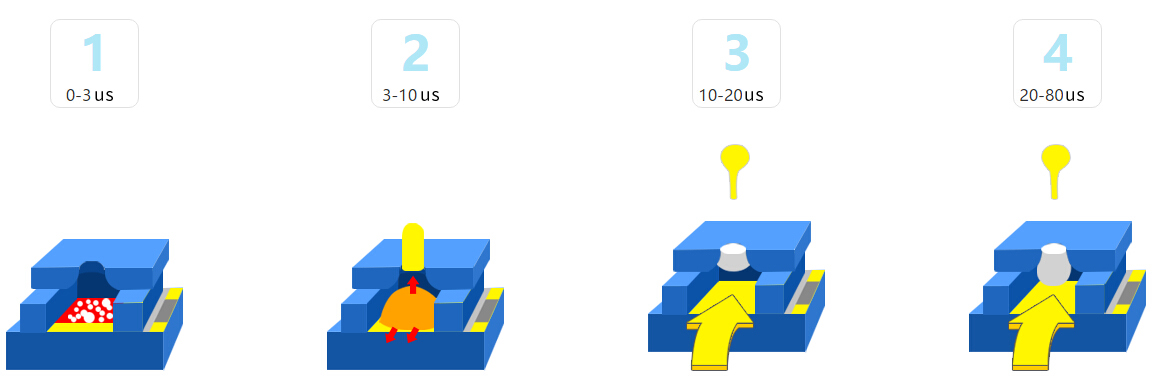

1、Inside the nozzle, ink is heated to 340℃ rapidly, forming vapour bubble.
2、Keeping on heating, vapour bubble swell and become ink droplet.
3、Bubble burst. the ink droplet drop on the material and the ink begin to refill.
4、Ink finish refilling and prepare for the next round.
300 nozzles are integrated in half-inch, which
make the vertical resolution up to 600 DPI.
0.029 microliters size of droplet bring high
quality printing effect.
High Speed and High Definition
Thermal Inkjet System has the advantages of high speed and high definition ,which enhance the identification rate of barcode or 2D barcode. It is a important thing for factory to save costs.
150 m/min
300x300DPI
During the common resolution 300 X 300 DPI, printing speed is fast up to 150m/min.
High expansibility is suitable for the printing need of width materials and scattered printing position.
It means that one equipment can deal several printing area in the same time.

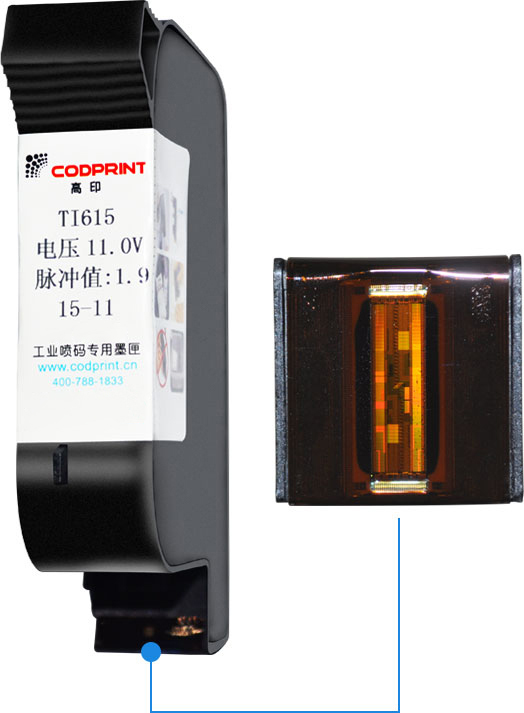

Cartridge is plug and play. The modular design is easy to change cartridges when it break and done.We provide different ink solution for different output factory, such as cartridge ,disconnected cartridge and bulk ink system.
